Peanut Shell Pellet Mill Makes Wastes into Treasure

Peanut shell is the common thing in China rural areas. Most of people take them as rubbish to handle or burn them even throw directly. It is a waste not to make full use of the peanut shells. So it is necessary to solve the problem, but what should we to do? That is to use peanut shell pellet mill to turn waste into treasure. These peanut shells are processed into pellet fuels. And that is a wonderful process. Now let’s see how the peanut shells becomes peanut shell pellet fuels.


Peanut shells processing procedures

1. Usually, the peanut shell should be ground into tiny pieces so as to go into the pellet mill die holes.
2. Then you should pay attention to the moisture content in the peanut shells. Generally speaking, you should dry the peanut shells by a drying machine to the proper moisture content which meets the processing requirement of peanut shell pellet mill.
3. The next is the most important step --- pelletizing. In this step, you need use the peanut shell pellet mill. Whether the pellets are formed or not, the peanut shell pellet mill plays an important role. There are several factors to affect the pellets forming including compression ratio, the clearance between the roller and die, temperature, pressure, etc. So a good peanut shell pellet is so important.
4. After the pellets coming out of the peanut shell pellet mill, you can decide whether you should use the cooling machine and packing machine or not according to your production scale and the pellets usages.



Parameters of Peanut Shell Pellet Mill

Our company supply two kind of peanut shell pellet mills, flat die pellet mill and ring die pellet mill. Both of them have their different types. The following gives the parameters of two types of flat die pellet mill:

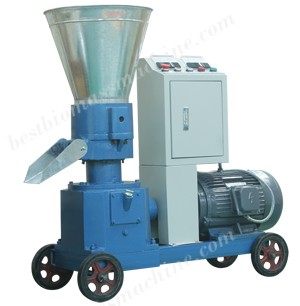

Electric type:

	Model number	Power (kw)	Output (kg/h)	N.W/G.W(kg)	Package size(mm)
	ZLSP150B	3phase,5.5	50-100	95/100	800*450*700
	ZLSP200B	3phase,7.5	80-120	200/230	1050*480*930
	ZLSP230B	3phase,11	120-200	290/320	1180*540*1000
	ZLSP260B	3phase,15	160-250	320/360	1240*540*950
	ZLSP300B	3phase,22	250-400	350/380	1300*560*1100

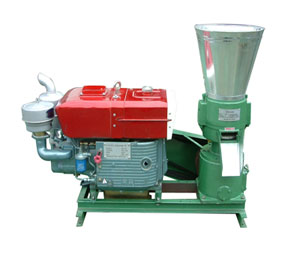

Diesel type:

	Model number	Power (kw)	Output (kg/h)	N.W/G.W(kg)	Package size(mm)
	ZLSP150A	10	50-100	180/220	1000*500*750
	ZLSP200A	15	80-120	210/240	1460*750*900
	ZLSP230A	22	120-200	280/310	1560*850*1000
	ZLSP260A	33	160-250	330/360	1200*500*1070
	ZLSP300A	41	250-400	410/450	1220*600*1100

There are many other types of peanut shell pellet mills, if you want to know more, you can contact us.

From the chart, we can know that, different powers have different capacities. Usually speaking, the large capacity pellet mill is suitable for large production line, while the small peanut shell pellet mill is often used for household.

Our company not only supply the peanut pellet mill, auxiliary devices are also in within the scope of business like splitter, crusher/hammer mill, elevator, belt conveyor, drying machine, cooling machine, packing machine, etc. Those devices are to assist the pellet mill to produce pellets more easily and quickly. If you want to have the peanut shell pellet mill even the auxiliary devices, contact us, we will give the best service.
