Wood Chipper Machine
Wood chipper machine plays an irreplaceable role in the complete pellet production line that takes wood log, weed tree, etc as raw materials.
Processing Materials:
Undersized log, timer residues (branch, twigs,etc), wood processing residues (batten, slab, wood core, fishtail veneer, etc) and wood, etc.

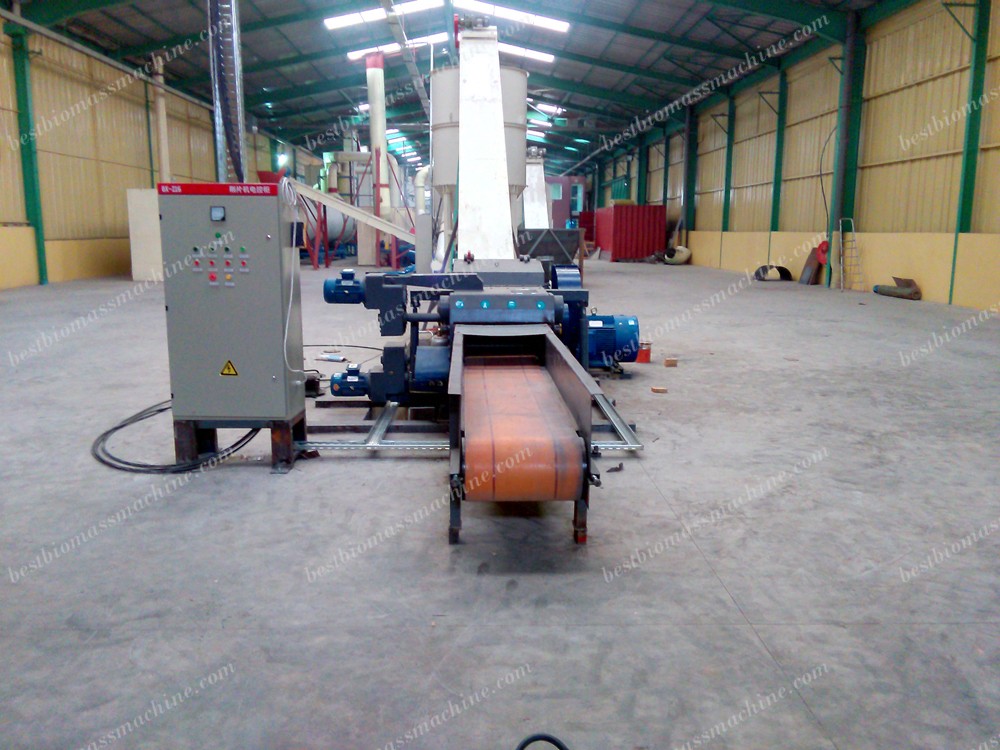

Wood Chipper Machine Front in Pellet Production Line

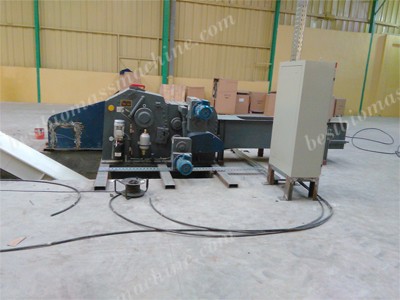

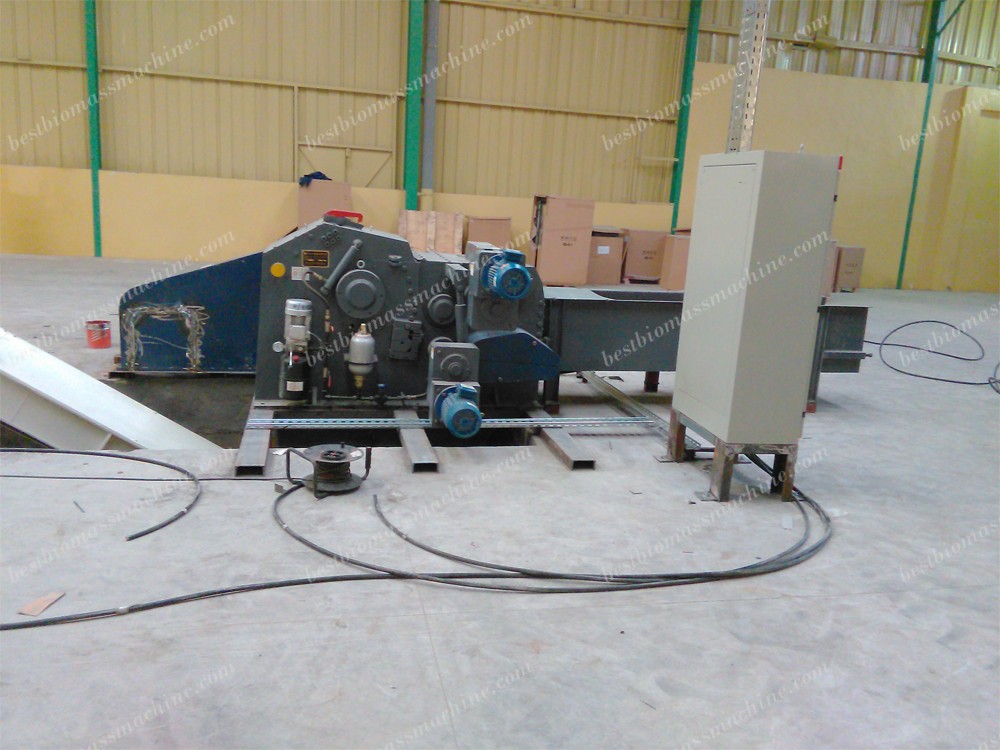

Wood Chipper Side connectted with Hoister and Hammer Mill
Components of The Wood Chipping Machine:
- Knife-cylinder assembly
- Upper feeding roll
- Lower feeding roll
- Transport assembly
- Hydraulic system
- Electric control system
Technology Parameters of Wood Chipping Machine
| Wood Chipping Machine BX216 | Wood Chipping Machine BX-315N | ||
|---|---|---|---|
| Knife-cylinder diameter（mm） | 650mm | Main power | Diesel engine 54HP |
| Fly cutter amount（slice） | 2 | Electrical control cabinet | standard type two step-down start |
| Feed inlet size（height×width） | 240×540mm | In feeding | 4m conveyor belt |
| Knife-cylinder speed（rpm） | 590 | Out feeding | 10m pattern conveyor belt |
| Feeding speed（m/min） | 38 | Number of cut blades | fly blades 2pcs，bottom blade 1pcs，Reserve cut blade 1pcs |
| Max diameter of materials（mm） | 200 | Rotor speed | 595 rpm |
| Chip length（mm） | 15-30 | Infeeding open | 400*170mm |
| Production ability（actual cubic meter/h） | 10-12 | Speed of infeeding | 38m/minute |
| Main motor power（kw） | 55(Fulin,Shandong province) | Dimension of chips | Length 20-30mm，Width 25-35mm，Thickness 3-8mm |
| feeding roll motor power（kw） | 3×1 4×1 | Capacity | 3-6 ton per hour |
| weight（t） | 4.07 | Weight | 3600KG |
| Dimension（length×width×height）(mm) | 1980×1950×1250 | ||
Characteristics of The Chipping Machine:
