What is Small Pellet Mill?
Small pellet mill is also called flat die pellet mill, which is a small type pellet making machine with small capacity. This pellet machine has two types, D-type and R-type. The two type flat die pellet mill are all good at making wood pellets. Relatively speaking, the yield of D-type is less than R-type. So it is more suitable for processing soft wood raw materials ( like pine wood ). Besides, the investment is lower. R-type is more suitable for harder wood raw materials ( like Oak wood ). From the aspect of structure, the roller of D-type pellet press is fixed on the upper machine and the die rotates with the main shaft. R-type is contrary to D-type, the die of R-type is fixed while the roller rotates.
D-type Flat Die Pellet Mill

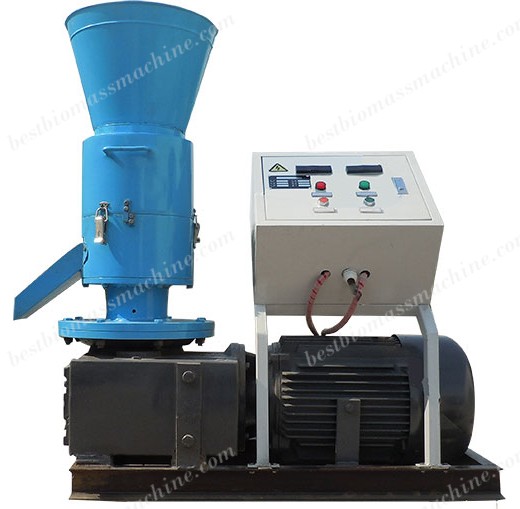

Electric Motor-driven Flat Die Pellet Mills (Modle B)
 |
Model | Power(kw) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|---|
| ZLSP-D 150B | 3phase 5.5 | 50-100 | 95/110 | 800*450*700 | |
| ZLSP-D 200B | 3phase 7.5 | 80-120 | 200/230 | 1050*480*930 | |
| ZLSP-D 230B | 3phase 11 | 120-200 | 290/320 | 1180*540*1000 | |
| ZLSP-D 260B | 3phase 15 | 160-250 | 320/360 | 1240*540*950 | |
| ZLSP-D 300B | 3phase 22 | 250-400 | 350/380 | 1300*560*1100 |

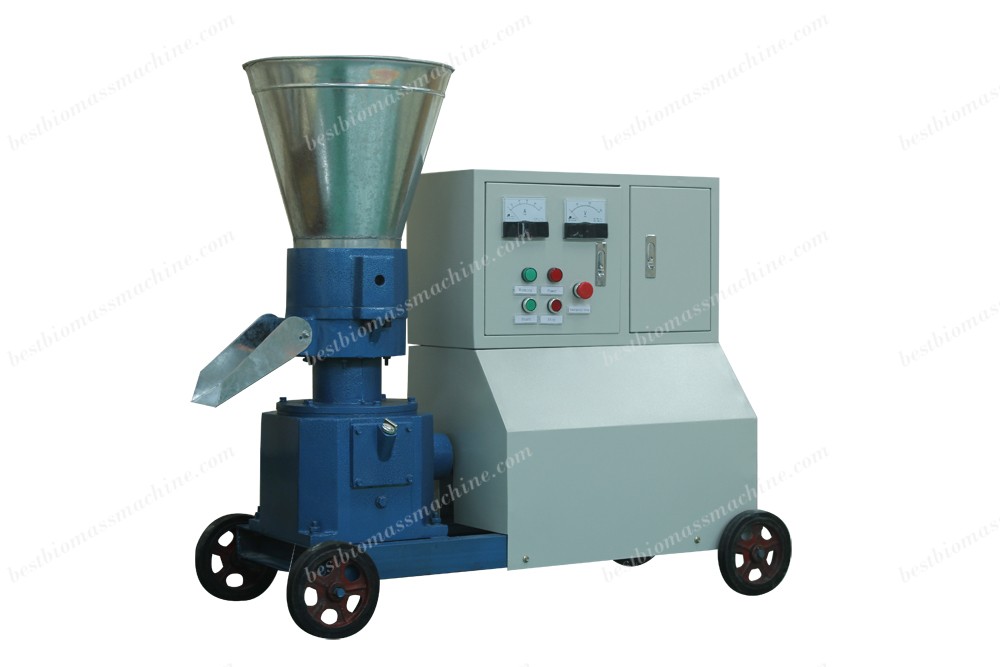

Electric Motor-driven Small Pellet Mills(Modle C)
 |
Model | Power(kw) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|---|
| ZLSP-D 150C | 3phase 5.5 | 60-110 | 105/125 | 1000*480*780 | |
| ZLSP-D 200C | 3phase 7.5 | 80-120 | 210/230 | 1050*550*830 | |
| ZLSP-D 230C | 3phase 11 | 120-200 | 290/320 | 1200*560*950 | |
| ZLSP-D 260C | 3phase 15 | 160-250 | 340/370 | 1240*580*1000 | |
| ZLSP-D 300C | 3phase 22 | 250-400 | 425/465 | 1300*620*1100 |

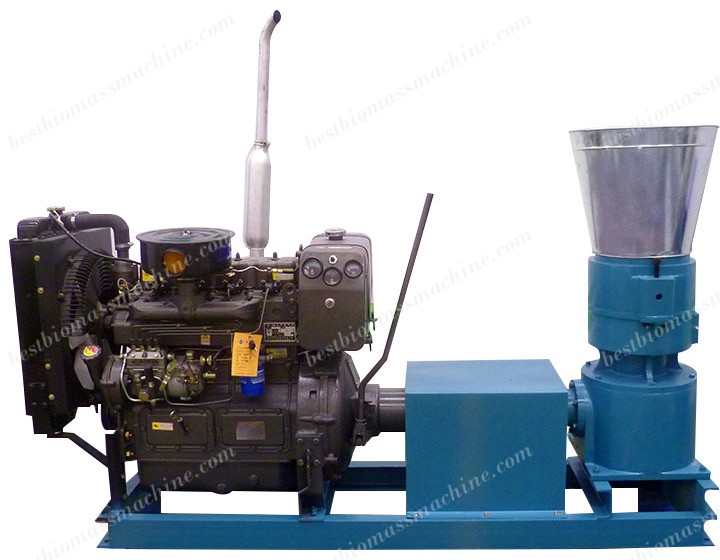

Diesel Engine Small Pellet Mills (Model A)
 |
Model | Power(Hp) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|---|
| ZLSP-D 150A | 8 | 50-100 | 180/220 | 1000*500*750 | |
| ZLSP-D 200A | 15 | 80-120 | 210/240 | 1460*750*900 | |
| ZLSP-D 230A | 22 | 120-200 | 280/310 | 1560*850*1000 | |
| ZLSP-D 260A | 30 | 160-250 | 330/360 | 1200*500*1070 | |
| ZLSP-D 300A | 55 | 250-400 | 410/450 | 1220*600*1000 |

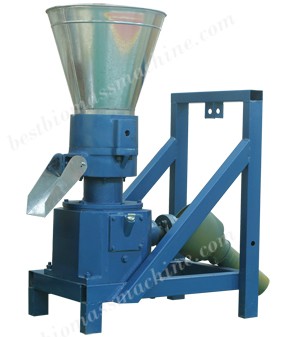

PTO Small Pellet Mill (Model P)
 |
Model | Power(Hp) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|---|
| ZLSP-D 150P | ≥8 | 50-100 | 90/110 | 900*540*1020 | |
| ZLSP-D 200P | ≥15 | 80-20 | 130/150 | 1000*540*1020 | |
| ZLSP-D 230P | ≥22 | 120-200 | 175/200 | 1000*540*1020 | |
| ZLSP-D 260P | ≥30 | 160-250 | 235/255 | 1050*540*900 | |
| ZLSP-D 300P | ≥55 | 250-400 | 305/325 | 1100*540*1000 |

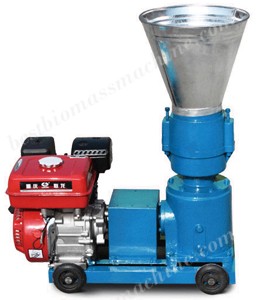

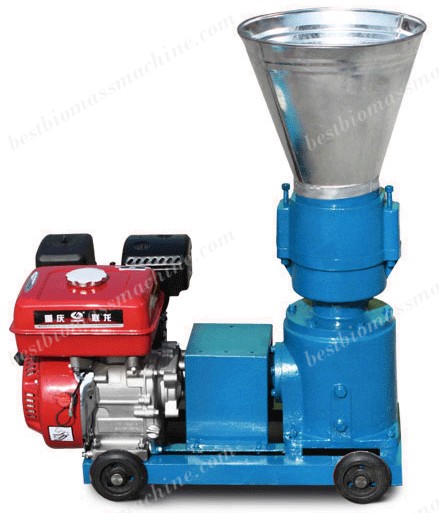

Gas Engine Small Pellet Machine (Model Q)
 |
Model | Power(Hp) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|---|
| ZLSP150Q | 10 | 90-120 | 180/220 | 1000*500*750 |
R-type Small Pellet Mill
Electric Motor-driven Flat Die Pellet Machine (Modle B)
 |
Model | Power(kw) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|---|
| ZLSP-R 200B | 3phase 7.5 | 80-120 | 215/245 | 950*450*1050 | |
| ZLSP-R 300B | 3phase 22 | 250-350 | 540/575 | 1350*750*1400 | |
| ZLSP-R 400B | 3phase 30 | 350-450 | 770/810 | 1400*800*1450 | |
| ZLSP-R 420B | 3phase 37 | 400-600 | 1100/1200 | 1630*620*1400 | |
| ZLSP-R 550B | 3phase 55 | 500-800 | 1770 | 2300x750x1850 |

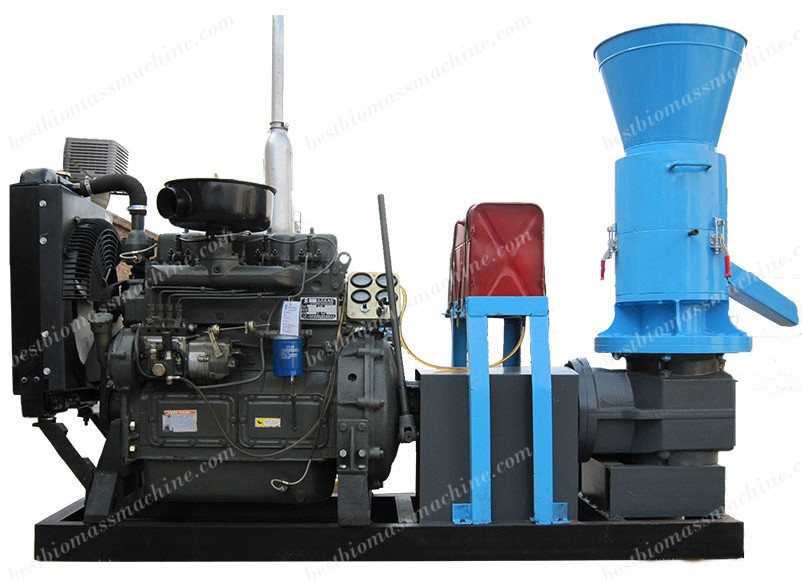

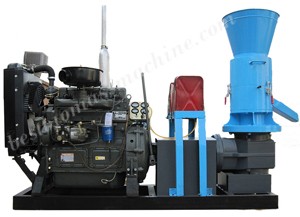

Diesel Engine Small Pellet Press (Model A)
 |
Model | Power(Hp) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|---|
| ZLSP-R 200A | 15 | 80-120 | 320/350 | 1460*950*1100 | |
| ZLSP-R 300A | 36 | 250-350 | 850/890 | 1100*700*2480 | |
| ZLSP-R 400A | 55 | 350-450 | 1010/1050 | 1300*800*2600 | |
| ZLSP-R 420A | 62 | 400-600 | 1200 | 2590*660*1400 |
Advantages of Small Flat Die Pellet Mill
- Easy to operate and move.
- Small pellet mill takes small place to put.
- Small volume makes it easy to maintain and change spare parts.
- It is cost-effective for the low price.
- Flat die pellet mill is with CE certification, which makes sure the stable running and high performance.
- It consume lower energy producing more profits.
- The end products are of high density and hardness.

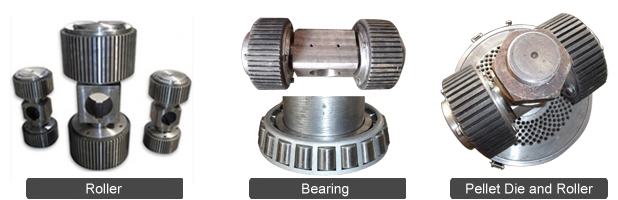

Small Pellet Mill Parts
There are two major parts of the flat die pellet mill, roller and pellet die. They are the key parts during the pellet production and they decide the quality of pellets.
- Pellet mill roller with a cylinder shape is large which increases the contact area between roller and materials, that improves the yield, rate of pellet making, and pellet density.

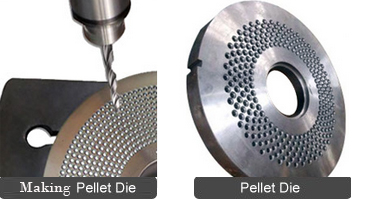

- The pellet die is a round plate with many holes, and the materials are pressed by the roller into those pellet die holes forming cylindrical rods.
- The gap between roller and pellet die is vital, too large or too small gap can not shape pellets well.
Except for the above parts, there are other components of flat die pellet mill.
Bearing is also important. It adopts sealing structure to prevent dirt from going into it greatly improving the transmission efficiency.
Gear box in the pellet mill adopts two-stage gear transmission and the gear adopts high quality alloy steel, with the advantages of smooth transmission, low noise, carrying capacity, low temperature, and long service life.
Bearing is also important. It adopts sealing structure to prevent dirt from going into it greatly improving the transmission efficiency.
Gear box in the pellet mill adopts two-stage gear transmission and the gear adopts high quality alloy steel, with the advantages of smooth transmission, low noise, carrying capacity, low temperature, and long service life.
Flat die pellet mill is suitable for home use, small plant production and farm. The end products can be used for household heating, cooking, horse bedding, sometimes for industrial boiler heating, for its highest yield can be up to 500kg/h.
