What is Briquette Machine?

Briquette machine is also called briquetting press machine, briquette making machine or briquette maker, etc. It is a machine that is used to process biomass raw materials into high-density wood briquettes, sawdust briquettes or charcoal briquettes with the shape of blocks or rods. There are mainly two types of briquetting machine that are on hot sale, punching briquetting machine and screw press briquette machine.

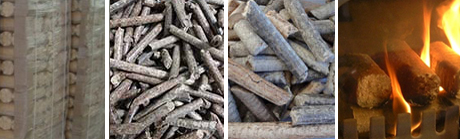

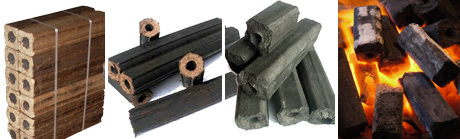

The following pictures are the end products of punching briquette machine and screw press briquette machine.


The end products, biomass briquettes are largely used in industrial and household heating, cooking, industrial boiler and industrial electric generation.

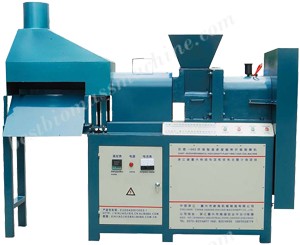

Screw Type Briquette Machines

	Model	GCBC- I	GCBC-II	GCBC-IIA	GCBA-I	GCBA-II
	Output capacity (kg/h)	180-210	300-350	300-350	180-210	280~350
	Motor Power (kw)	15	18.5	18.5	18.5	22
	Electric heater (kw)	2.2*2kw	2.2*2kw	2.2*2kw	5kw	5kw
	Size of briquettes	Φ=40mm, 50mm, 60mm, 70mm
	Size of inside hole	Dia.16mm	Dia.16mm	Dia.16mm	Dia.16mm	Dia.18mm
	Density of briquettes	1.3 g/cm3	1.3 g/cm3	1.3 g/cm3	1.3 g/cm3	1.3 g/cm3
	Weight(kg)	700kg	1000kg	800kg	560kg	780kg
	Packing Weight(kg)	800kg	1100kg	900kg	660kg	880kg
	Overall dimension(mm)	1800*700*1840mm	2000*600*1700	2000*600*1700	1600*1000*1000	1500*1200*1600
	Life of the inner former	1-2years	1-2years	1-2years	1years	1years

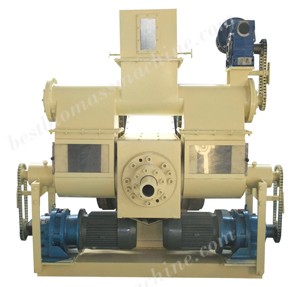

Punching Briquette Machine

	Main Parts	Specifications		Capacity	Density	Main engine power	Weight	Dimensions		Operator	Area
	Briquette machine, Feeder, Electric control cabinet	Diameter 8mm-22mm pellets	Diameter 30-70mm briquettes	0.8-1.2 t/h	1000-1300kg/m3	45KW	7000kg	Main engine 3.4mX2mX1.8m	Electric control cabinet 1.2mX0.6mX1.2m	2	About 80 square meters
	The raw material moisture 8-20%.

Advantages of Briquette Machines

• Main parts of briquetting press machine are easy to be changed ensuring the production capacity.
• It adopts special materials that are longest-wearing prolonging the service life of briquetting machine.
• Unique lubrication system makes sure the production efficiency.
• Various raw materials: agricultural wastes, forestry wastes, stalks, sawdust, and other biomass materials.
• The end products, biomass briquettes owns the characteristics of high density, combustible efficiency and environmental protection.
• Biomass briquettes have regular shapes, so they are easy to store and transport.
